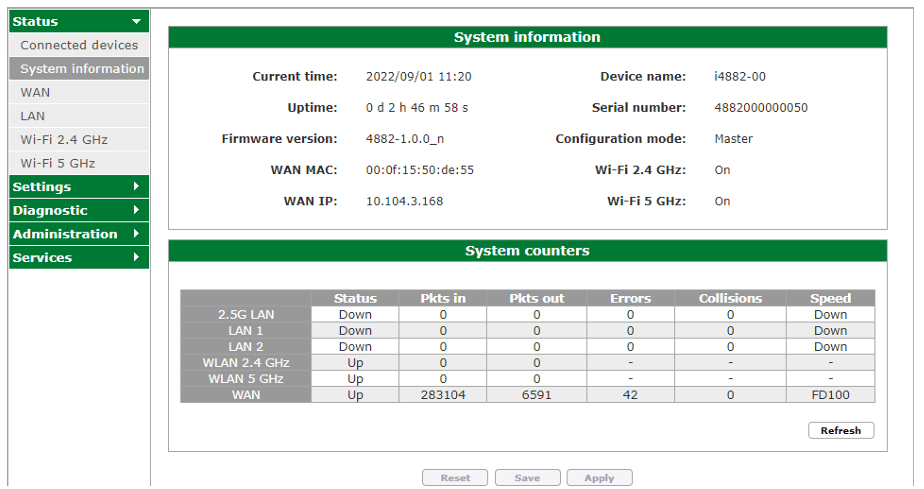

To access general information about the CPE go to the Status/System information menu item.
The System information section contains general information about CPE state:
- Current time: current time and date,
- Uptime: duration the device has been powered up,
- Firmware version: current software version operating on the device,
- WAN MAC: physical address of the device’s WAN interface,
- WAN IP: IP address of device’s WAN interface,
- Device name: name of the device, • Serial number: unit’s serial number,
- Configuration mode: Unconfigured (no steering or configuration propagation between CPE and i3550) or Master (steering and configuration propagation active between CPE and i3550),
- Wi-Fi 2.4 GHz: The status of the Wi-Fi 802.11b/g/n wireless interface, either On or Off,
- Wi-Fi 5 GHz: The status of the Wi-Fi 802.11ac wireless interface, either On or Off.
The System counters section contains statistical information about data entering and leaving the interfaces of the CPE, as well as error and collision counters:
- Status: current status of a given interface, either Up or Down,
- Pkts in: number of incoming packets in the current session,
- Pkts out: number of outgoing packets in the current session,
- Errors: transmission error counter, • Collisions: collision counter,
- Speed: negotiated speed (FD1000 - Full Duplex at 1000Mbps, FD100 - Full Duplex at 100Mbps, FD10 - Full Duplex at 10Mbps, HD100 - Half Duplex at 100Mbps, HD10 - Half Duplex at 10Mbps).
The data under information menu can be refreshed at any time by clicking the Refresh button. As this menu does not include any configurable options the Reset, Save, and Apply buttons are disabled
