Complete the following steps to log in to the web interface:
1. Enter the IP address of your CPE in the address bar of your web browser. The following login prompt will be displayed.
2. Enter your username and password in the respective fields of the dialog box.
3. Click the Log in button to log in or use the Clear button to clear both fields and then type in your credentials again.
The first time you log in, use the username and password provided by your network operator. After the first login you will be able to change your password under the Administration/UI login password menu.
Web interface general overview

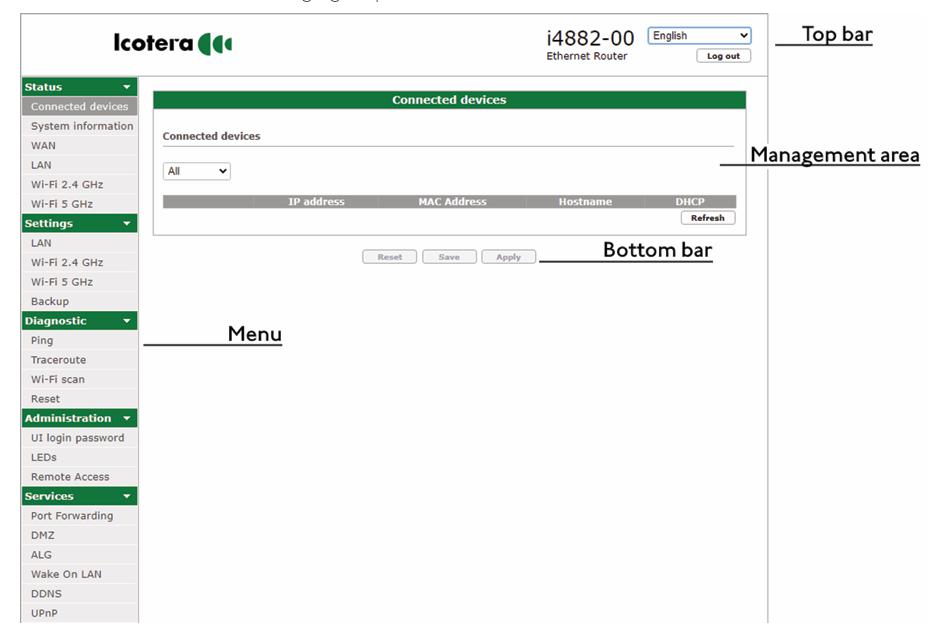

After a successful login the start window of the web interface is displayed. By default it is the Connected devices item of the Status menu. The following figure presents the structure of the web interface
Top bar
The top bar contains the Icotera logo, device designation, drop-down list which enables to choose interface language, and the Log out button.
Menu
The menu has a form of a collapsible list of available options, which are grouped into two levels: main and secondary. The main level provides access to general CPE management categories, while the secondary level presents a submenu of available options for a given category. By default all menu options are expanded, but they can be collapsed by clicking chosen main menu entries
Management area
The management area is where all the CPE management and status information are displayed and modified. Depending on the selected option, it can display a set of particular configuration options or a list of current CPE status information.
Bottom bar
In the centre of the bottom bar, there are three buttons:
• Reset: resets all changes made in the current session.
• Save: saves all changes made in the current session.
• Apply: applies all changes saved during the current session.
Viewing status information
The Status menu provides tools for listing connected devices, viewing general CPE system information, as well as to obtain information about WAN, LAN and wireless interfaces operating on the device. It also allows to view phone info, VoIP call log, as well as information about WDS status and associated clients
Connected devices

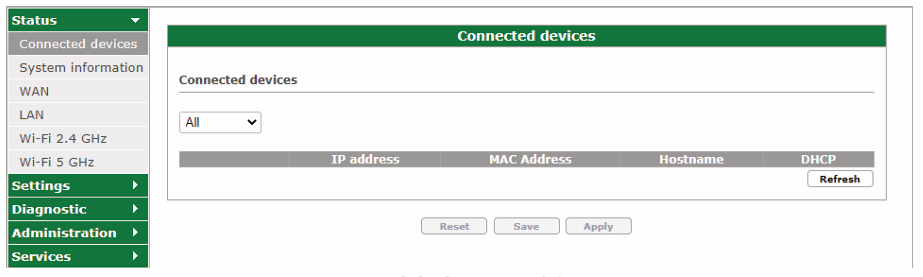

The Connected devices item of the Status menu contains information about devices connected to the CPE.
The drop down lists allows to chose a particular interface and the table contains the following information:
• IP address: IP address of the connected device,
• MAC address: physical address of the connected device.
• Hostname: name of the connected device.
• DHCP: Static or DHCP (if the IP address was assigned by a DHCP server).
The data presented in the table can be refreshed at any time by clicking the Refresh button.
As this menu does not include any configurable options the Reset, Save, and Apply buttons are disabled. General system information To access general information about the CPE go to the Status/System information menu item
