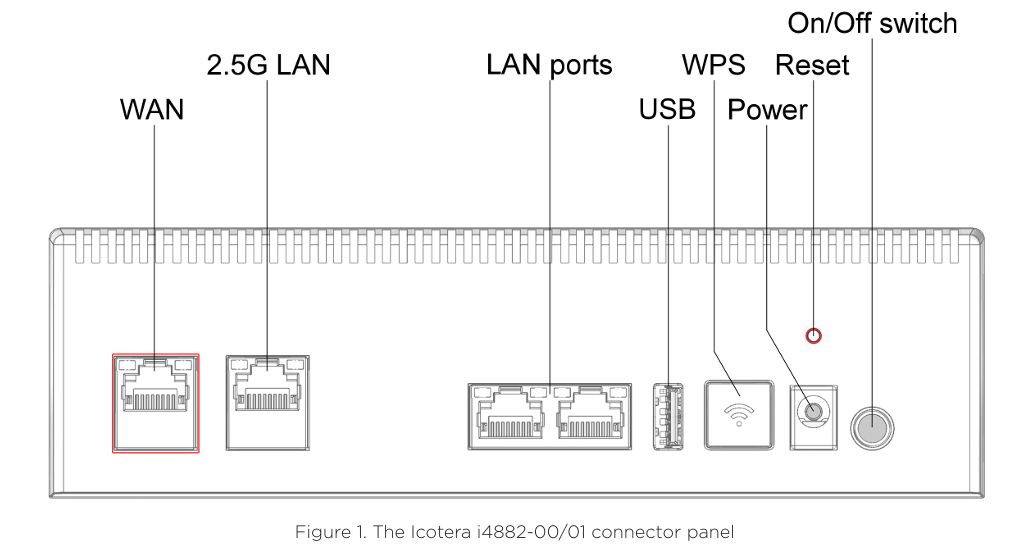

The Icotera i4882-00/01 connector panel, shown in the following figure, contains WAN port, LAN ports, USB connector, WPS button, power port, on/off switch, and reset button
Connectors
The i4882-00/01 connector panel includes 1 RJ45 100/1000/2500 Base Tx WAN port, 1 RJ45 connector 100/1000/2500 BaseTx LAN port, two RJ45 connectors 10/100/1000 BaseT(x) ports, and 1 USB 2.0 port.
10Base-T/100Base-TX/1000Base-T Ports
The Icotera i4882-00/01 uses 100/1000/2500 Base Tx and 10/100/1000 BaseTx port connectors configured as MDI/MDIX. The CPE uses auto sense ports that are designed to operate at 10 Mb/s, 100 Mb/s, or at 1000 Mb/s (2500 Mb/s WAN), depending on the connecting device. These ports support the IEEE 802.3u auto negotiation standard, which means that when a port is connected to another device that also supports the IEEE 802.3u standard, then the two devices negotiate the best speed and duplex mode. The 10Base-T/100Base-TX/1000Base-T RJ-45 switch ports also support half- and full-duplex mode operation and can connect to 10 Mb/s, 100 Mb/s or 1000 Mb/s Ethernet segments or nodes.
USB Port
The Icotera i4882-00/01 is equipped with one USB 2.0 port that supply 5 V at 500 mA.
Power Port
The power port accepts DC 12V power source. It is important to make sure that the proper power adapter is suitable to a particular region.
On/Off Switch
The On/Off switch enables you to switch the i4882-00/01 on or off, as well as reboot it and restore the last saved configuration.
Reset Button
The Reset button has four modes of operation: • when CPE is operating - pressed for less than 10 seconds: restarts CPE. • when CPE is operating - pressed for more than 10 seconds: restores default CPE settings. • when CPE is off - power-on with reset button pressed for less than 10 seconds: restores default CPE settings. • when CPE is off - power-on with reset button pressed for more than 10 seconds: boots CPE from the second bank.
Serial Number
The serial number of the Icotera CPE consists of 13 digits. The format of the serial number is PPPPCCXXXXXXX, where PPPP is the product ID, CC is the product variant, and XXXXXXX is the running serial number. For example 4882001234567 would be a serial number of the i4882-00/01 device with a running number of 1234567.
